LINEAR MOTION

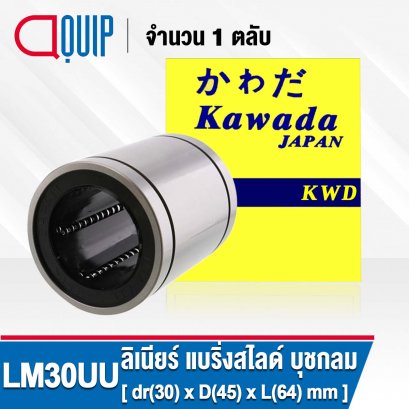

ลิเนียร์บุชชิ่งประกอบด้วยตัวเรือนทรงกระบอกที่ประกอบด้วยลูกปืนและกรง
ตัวเรือนได้รับการออกแบบให้เลื่อนไปตามเพลากราวด์ที่มีความแม่นยำ ตลับลูกปืนเม็ดกลมรักษาช่องว่างระหว่างเพลาและบุชชิ่ง ช่วยลดแรงเสียดทานระหว่างการเคลื่อนที่เชิงเส้น
| Model No. | dr | D | L | L1 | L2 | Do | h1 | O | |
| Standard | Open | ||||||||
| LM3UU | 3 | 7 | 10 | - | - | - | - | - | |
| LM4UU | 4 | 8 | 12 | - | - | - | - | - | |
| LM5UU | 5 | 10 | 15 | 10.2 | 1.1 | 9.6 | - | - | |
| LM6UU | 6 | 12 | 19 | 13.5 | 1.1 | 11.5 | - | - | |
| LM8SUU | 8 | 15 | 17 | 11.5 | 1.1 | 14.3 | - | - | |
| LM8UU | 8 | 15 | 24 | 17.5 | 1.1 | 14.3 | - | - | |
| LM10UU | LM10UU-OP | 10 | 19 | 29 | 22 | 1.3 | 18 | 6.8 | 80 |
| LM12UU | LM12UU-OP | 12 | 21 | 30 | 23 | 1.3 | 20 | 8 | 80 |
| LM13UU | LM13UU-OP | 13 | 23 | 32 | 23 | 1.3 | 22 | 9 | 80 |
| LM16UU | LM16UU-OP | 16 | 28 | 37 | 26.5 | 1.6 | 27 | 11 | 60 |
| LM20UU | LM20UU-OP | 20 | 32 | 42 | 30.5 | 1.6 | 30.5 | 11 | 60 |
| LM25UU | LM25UU-OP | 25 | 40 | 59 | 41 | 1.85 | 38 | 12 | 50 |
| LM30UU | LM30UU-OP | 30 | 45 | 64 | 44.5 | 1.85 | 43 | 15 | 50 |
| LM35UU | LM35UU-OP | 35 | 52 | 70 | 49.5 | 2.1 | 49 | 17 | 50 |
| LM40UU | LM40UU-OP | 40 | 60 | 80 | 60.5 | 2.1 | 57 | 20 | 50 |
| LM50UU | LM50UU-OP | 50 | 80 | 100 | 74 | 2.6 | 76.5 | 25 | 50 |
| LM60UU | LM60UU-OP | 60 | 90 | 110 | 85 | 3.15 | 86.5 | 30 | 50 |
| Model No. | dr | D | L | L1 | L2 | Do |
| LM3LUU | 3 | 7 | 19 | - | - | - |
| LM4LUU | 4 | 8 | 23 | - | - | - |
| LM5LUU | 5 | 10 | 29 | 20 | 1.1 | 9.6 |
| LM6LUU | 6 | 12 | 35 | 27 | 1.1 | 11.5 |
| LM8LUU | 8 | 15 | 45 | 35 | 1.1 | 14.3 |
| LM10LUU | 10 | 19 | 55 | 44 | 1.3 | 18 |
| LM12LUU | 12 | 21 | 57 | 46 | 1.3 | 20 |
| LM13LUU | 13 | 23 | 61 | 46 | 1.3 | 22 |
| LM16LUU | 16 | 28 | 70 | 53 | 1.6 | 27 |
| LM20LUU | 20 | 32 | 80 | 61 | 1.6 | 30.5 |
| LM25LUU | 25 | 40 | 112 | 82 | 1.85 | 38 |
| LM30LUU | 30 | 45 | 123 | 89 | 1.85 | 43 |
| LM35LUU | 35 | 52 | 135 | 99 | 2.1 | 49 |
| LM40LUU | 40 | 60 | 154 | 121 | 2.1 | 57 |
| LM50LUU | 50 | 80 | 192 | 148 | 2.6 | 76.5 |
| LM60LUU | 60 | 90 | 211 | 170 | 3.15 | 86.5 |
| Model No. | dr | D | L | L1 | L2 | Do | h1 | O | |
| Standard | OPen | ||||||||
| LME5UU | - | 5 | 12 | 22 | 14.5 | 1.1 | 11.5 | - | - |
| LME8UU | - | 8 | 16 | 25 | 16.5 | 1.1 | 15.2 | - | - |
| LME12UU | - | 12 | 22 | 32 | 22.9 | 1.3 | 21 | - | - |
| LME16UU | LME16UU-OP | 16 | 26 | 36 | 24.9 | 1.3 | 24.9 | 10 | 78 |
| LME20UU | LME20UU-OP | 20 | 32 | 45 | 31.5 | 1.6 | 30.3 | 10 | 60 |
| LME25UU | LME25UU-OP | 25 | 40 | 58 | 44.1 | 1.85 | 37.5 | 12.5 | 60 |
| LME30UU | LME30UU-OP | 30 | 47 | 68 | 52.1 | 1.85 | 44.5 | 12.5 | 50 |
| LME40UU | LME40UU-OP | 40 | 62 | 80 | 60.6 | 2.15 | 59 | 16.8 | 50 |
| LME50UU | LME50UU-OP | 50 | 75 | 100 | 77.6 | 2.65 | 72 | 21 | 50 |
| LME60UU | LME60UU-OP | 60 | 90 | 125 | 101.7 | 3.15 | 86.5 | 27.2 | 54 |
| LM80GA | LME80GA-OP | 80 | 120 | 165 | 133.7 | 4.15 | 116 | 36.3 | 54 |
| Model No. | dr | D | L | D1 | H | PCD | d1xd2xh |
| LMF6UU | 6 | 12 | 19 | 28 | 5 | 20 | 3.4x6.5x3.3 |
| LMF8SUU | 8 | 15 | 17 | 32 | 5 | 24 | 3.4x6.5x3.3 |
| LMF8UU | 8 | 15 | 24 | 32 | 5 | 24 | 3.4x6.5x3.3 |
| LMF10UU | 10 | 19 | 29 | 39 | 6 | 29 | 4.5x8x4.4 |
| LMF12UU | 12 | 21 | 30 | 42 | 6 | 32 | 4.5x8x4.4 |
| LMF13UU | 13 | 23 | 32 | 43 | 6 | 33 | 4.5x8x4.4 |
| LMF16UU | 16 | 28 | 37 | 48 | 6 | 38 | 4.5x8x4.4 |
| LMF20UU | 20 | 32 | 42 | 54 | 8 | 43 | 5.5x9.2x5.4 |
| LMF25UU | 25 | 40 | 59 | 62 | 8 | 51 | 5.5x9.2x5.4 |
| LMF30UU | 30 | 45 | 64 | 74 | 10 | 60 | 6.6x11x6.5 |
| LMF35UU | 35 | 52 | 70 | 82 | 10 | 67 | 6.6x11x6.5 |
| LMF40UU | 40 | 60 | 80 | 96 | 13 | 78 | 9x14x8.6 |
| LMF50UU | 50 | 80 | 100 | 116 | 13 | 98 | 9x14x8.6 |
| LMF60UU | 60 | 90 | 110 | 134 | 18 | 112 | 11.17.5x10.8 |
| Model No. | dr | D | L | D1 | H | PCD | d1xd2xh |
| LMF6LUU | 6 | 12 | 35 | 28 | 5 | 20 | 3.4x6.5x3.3 |
| LMF8LUU | 8 | 15 | 45 | 32 | 5 | 24 | 3.4x6.5x3.3 |
| LMF10LUU | 10 | 19 | 55 | 39 | 6 | 29 | 4.5x8x4.4 |
| LMF12LUU | 12 | 21 | 57 | 42 | 6 | 32 | 4.5x8x4.4 |
| LMF13LUU | 13 | 23 | 61 | 43 | 6 | 33 | 4.5x8x4.4 |
| LMF16LUU | 16 | 28 | 70 | 48 | 6 | 38 | 4.5x8x4.4 |
| LMF20LUU | 20 | 32 | 80 | 54 | 8 | 43 | 5.5x9.2x5.4 |
| LMF25LUU | 25 | 40 | 112 | 62 | 8 | 51 | 5.5x9.2x5.4 |
| LMF30LUU | 30 | 45 | 123 | 74 | 10 | 60 | 6.6x11x6.5 |
| LMF35LUU | 35 | 52 | 135 | 82 | 10 | 67 | 6.6x11x6.5 |
| LMF40LUU | 40 | 60 | 154 | 96 | 13 | 78 | 9x14x8.6 |
| LMF50LUU | 50 | 80 | 192 | 116 | 13 | 98 | 9x14x8.6 |
| LMF60LUU | 60 | 90 | 211 | 134 | 18 | 112 | 11x17.5x10.8 |
| Model No. | dr | D | L | D1 | K | H | PCD | d1xd2xh |
| LMK6UU | 60 | 12 | 19 | 28 | 22 | 5 | 20 | 3.4x6.5x3.3 |
| LMK8SUU | 8 | 15 | 17 | 32 | 25 | 5 | 24 | 3.4x6.5x3.3 |
| LMK8UU | 8 | 15 | 24 | 32 | 25 | 5 | 24 | 3.4x6.5x3.3 |
| LMK10UU | 10 | 19 | 29 | 39 | 30 | 6 | 29 | 4.5x8x4.4 |
| LMK12UU | 12 | 21 | 30 | 42 | 32 | 6 | 32 | 4.5x8x4.4 |
| LMK13UU | 13 | 23 | 32 | 43 | 34 | 6 | 33 | 4.5x8x4.4 |
| LMK16UU | 16 | 28 | 37 | 48 | 37 | 6 | 38 | 4.5x8x4.4 |
| LMK20UU | 20 | 32 | 42 | 54 | 42 | 8 | 43 | 5.5x9.2x5.4 |
| LMK25UU | 25 | 40 | 59 | 62 | 50 | 8 | 51 | 5.5x9.2x5.4 |
| LMK30UU | 30 | 45 | 64 | 74 | 58 | 10 | 60 | 6.6x11x6.5 |
| KMK35UU | 35 | 52 | 70 | 82 | 64 | 10 | 67 | 6.6x11x6.5 |
| LMK40UU | 40 | 60 | 80 | 96 | 75 | 13 | 78 | 9x14x8.6 |
| LMK50UU | 50 | 80 | 100 | 116 | 92 | 13 | 98 | 9x14.8.6 |
| LMK60UU | 60 | 90 | 110 | 134 | 106 | 18 | 112 | 11x17.5x10.8 |
| Model No. | dr | D | L | D1 | K | H | PCD | d1xd2xh |
| LMK6LUU | 6 | 12 | 35 | 28 | 22 | 5 | 20 | 3.4x6.5x3.3 |
| LMK8LUU | 8 | 15 | 45 | 32 | 25 | 5 | 24 | 3.4x6.5x3.3 |
| LMK10LUU | 10 | 19 | 55 | 39 | 30 | 6 | 29 | 4.5x8x4.4 |
| LMK12LUU | 12 | 21 | 57 | 42 | 32 | 6 | 32 | 4.5x8x4.4 |
| LMK13LUU | 13 | 23 | 61 | 43 | 34 | 6 | 33 | 4.5x8x4.4 |
| LMK16LUU | 16 | 28 | 70 | 48 | 37 | 6 | 38 | 4.5x8x4.4 |
| LMK20LUU | 20 | 32 | 80 | 54 | 42 | 8 | 43 | 5.5x9.2x5.4 |
| LMK25LUU | 25 | 40 | 112 | 62 | 50 | 8 | 51 | 5.5x9.2x5.4 |
| LMK30LUU | 30 | 45 | 123 | 74 | 58 | 10 | 60 | 6.6x11x6.4 |
| LMK35LUU | 35 | 52 | 135 | 82 | 64 | 10 | 67 | 6.6x11x6.4 |
| LMK40LUU | 40 | 60 | 154 | 96 | 75 | 13 | 78 | 9x14x8.6 |
| LMK50LUU | 50 | 80 | 192 | 116 | 92 | 13 | 98 | 9x14x8.6 |
| LMK60LUU | 60 | 90 | 211 | 134 | 106 | 18 | 112 | 11x17.5x10.8 |
| Model No. | dr | D | L | D1 | K | H | B | C | d1xd2xh |
| LMH6UU | 6 | 12 | 19 | 28 | 18 | 5 | 20 | - | 3.4x6.5x3.3 |
| LMH8SUU | 8 | 15 | 17 | 32 | 21 | 5 | 24 | - | 3.4x6.5x3.3 |
| LMH8UU | 8 | 15 | 24 | 32 | 21 | 5 | 24 | - | 3.4x6.5x3.3 |
| LMH10UU | 10 | 19 | 29 | 39 | 25 | 6 | 29 | - | 4.5x8x4.4 |
| LMH12UU | 12 | 21 | 30 | 42 | 27 | 6 | 32 | - | 4.5x8x4.4 |
| LMH13UU | 13 | 23 | 32 | 43 | 29 | 6 | 33 | - | 4.5x8x4.4 |
| LMH16UU | 16 | 28 | 37 | 48 | 34 | 6 | 31 | 22 | 4.5x8x4.4 |
| LMH20UU | 20 | 32 | 42 | 54 | 38 | 8 | 36 | 24 | 5.5x9.2x5.4 |
| LMH25UU | 25 | 40 | 59 | 62 | 46 | 8 | 40 | 32 | 5.5x9.2x5.4 |
| LMH30UU | 30 | 45 | 64 | 74 | 51 | 10 | 49 | 35 | 6.6x11x6.5 |
| Model No. | dr | D | L | D1 | K | H | B | C | d1xd2xh |
| LMH6LUU | 6 | 12 | 35 | 28 | 18 | 5 | 20 | - | 3.4x6.5x3.3 |
| LMH8LUU | 8 | 15 | 45 | 32 | 21 | 5 | 24 | - | 3.4x6.5x3.3 |
| LMH10LUU | 10 | 19 | 55 | 39 | 25 | 6 | 29 | - | 4.5x8x4.4 |
| LMH12LUU | 12 | 21 | 57 | 42 | 27 | 6 | 32 | - | 4.5x8x4.4 |
| LMH13LUU | 13 | 23 | 61 | 43 | 29 | 6 | 33 | - | 4.5x8x4.4 |
| LMH16LUU | 16 | 28 | 70 | 48 | 34 | 6 | 31 | 22 | 4.5x8x4.4 |
| LMH20LUU | 20 | 32 | 80 | 54 | 38 | 8 | 36 | 24 | 5.5x9.2x5.4 |
| LMH25LUU | 25 | 40 | 112 | 62 | 46 | 8 | 40 | 32 | 5.5x9.2x5.4 |
| LMH30LUU | 30 | 45 | 123 | 74 | 51 | 10 | 49 | 35 | 6.6x11x6.5 |
| Model No. | Shaft diameter | h | D | W | H | G | A | B | E | BOLT x e | C | L |
| SC8UU | 8 | 11 | 17 | 34 | 22 | 18 | 6 | 24 | 5 | M4x8 | 18 | 30 |
| SC10UU | 10 | 13 | 20 | 40 | 26 | 21 | 8 | 28 | 6 | M5x12 | 21 | 35 |
| SC12UU | 12 | 15 | 21 | 42 | 28 | 24 | 8 | 30.5 | 5.75 | M5x12 | 26 | 36 |
| SC13UU | 13 | 15 | 22 | 44 | 30 | 24.5 | 8 | 33 | 5.5 | M5x12 | 26 | 39 |
| SC16UU | 16 | 19 | 25 | 50 | 38.5 | 32.5 | 9 | 36 | 7 | M5x12 | 34 | 44 |
| SC20UU | 20 | 21 | 27 | 54 | 41 | 35 | 11 | 40 | 7 | M6x12 | 40 | 50 |
| SC25UU | 25 | 26 | 38 | 76 | 51.5 | 42 | 12 | 54 | 11 | M8x18 | 50 | 67 |
| SC30UU | 30 | 30 | 39 | 78 | 59.5 | 49 | 15 | 58 | 10 | M8x18 | 58 | 72 |
| SC35UU | 35 | 34 | 45 | 90 | 68 | 54 | 18 | 70 | 10 | M8x18 | 60 | 80 |
| SC40UU | 40 | 40 | 51 | 102 | 78 | 62 | 20 | 80 | 11 | M10x25 | 60 | 90 |
| SC50UU | 50 | 52 | 61 | 122 | 102 | 80 | 25 | 100 | 11 | M10x25 | 80 | 11 |
| Model No. | Shaft diameter | h | D | W | H | G | N | A | B | E | BOLT x e | C | L |
| SC8LUU | 8 | 11 | 17 | 34 | 22 | 18 | 7 | 6 | 24 | 5 | M4x8 | 42 | 58 |
| SC10LUU | 10 | 13 | 20 | 40 | 26 | 21 | 7 | 8 | 28 | 6 | M5x12 | 46 | 68 |
| SC12LUU | 12 | 15 | 21 | 42 | 28 | 24 | 6.5 | 8 | 30.5 | 5.75 | M5x12 | 50 | 70 |
| SC13LUU | 13 | 15 | 22 | 44 | 30 | 24.5 | 6.5 | 8 | 33 | 5.5 | M5x12 | 50 | 75 |
| SC16LUU | 16 | 19 | 25 | 50 | 38.5 | 32.5 | 6 | 9 | 36 | 7 | M5X12 | 60 | 85 |
| SC20LUU | 20 | 21 | 27 | 54 | 41 | 35 | 7 | 11 | 40 | 7 | M6x12 | 70 | 96 |
| SC25LUU | 25 | 26 | 38 | 76 | 51.5 | 42 | 4 | 12 | 54 | 11 | M8x18 | 100 | 130 |
| SC30LUU | 30 | 30 | 39 | 78 | 59.5 | 49 | 5 | 15 | 58 | 10 | M8x18 | 110 | 140 |
| SC35LUU | 35 | 34 | 45 | 90 | 68 | 54 | 5.5 | 18 | 70 | 10 | M8x18 | 120 | 155 |
| SC40LUU | 40 | 40 | 51 | 102 | 78 | 62 | 5 | 20 | 80 | 11 | M10x25 | 140 | 175 |
| SC50LUU | 50 | 52 | 51 | 122 | 102 | 80 | 5 | 25 | 100 | 11 | M10x25 | 160 | 215 |
| Model No. | Shaft diameter | h | W | L | F | T | h1 | O | B | C | Sxe | slide Bush |
| SBR16UU | 16 | 20 | 45 | 45 | 33 | 9 | 10 | 80 | 32 | 30 | M5x12 | LM16UU-OP |
| SBR20UU | 20 | 23 | 48 | 50 | 39 | 11 | 10 | 60 | 35 | 35 | M6x12 | LM20UU-OP |
| SBR25UU | 25 | 25 | 60 | 65 | 47 | 14 | 11.5 | 50 | 40 | 40 | M6X12 | LM25UU-OP |
| SBR30UU | 30 | 30 | 70 | 70 | 56 | 15 | 14 | 50 | 50 | 50 | M8x18 | LM30UU-OP |
| SBR35UU | 35 | 35 | 80 | 80 | 63 | 18 | 16 | 50 | 55 | 55 | M8x18 | LM35UU-OP |
| SBR40UU | 40 | 40 | 90 | 90 | 72 | 20 | 19 | 50 | 65 | 65 | M10x20 | LM40UU-OP |
| SBR50UU | 50 | 50 | 120 | 110 | 92 | 25 | 23 | 50 | 94 | 80 | M10x20 | LM50UU-OP |
| Model No. | Shaft diameter | h | G | A | B | C | E | F | R | S | Clamping bolt designation | Mounting bolt designation |
| SK-8 | 8 | 20 | 21 | 42 | 14 | 32.8 | 6 | 18 | 32 | 5 | M4 | M5 |
| SK-10 | 10 | 20 | 21 | 42 | 14 | 32.8 | 6 | 18 | 32 | 5 | M4 | M5 |
| SK-12 | 12 | 23 | 21 | 42 | 14 | 37.5 | 6 | 20 | 32 | 5 | M4 | M5 |
| SK-13 | 13 | 23 | 21 | 42 | 14 | 37.5 | 6 | 20 | 32 | 5 | M4 | M5 |
| SK-16 | 16 | 27 | 24 | 48 | 16 | 44 | 8 | 25 | 38 | 5 | M4 | M5 |
| SK-20 | 20 | 31 | 30 | 60 | 20 | 51 | 10 | 30 | 45 | 7.5 | M5 | M6 |
| SK-25 | 25 | 35 | 35 | 70 | 24 | 60 | 12 | 38 | 56 | 7 | M6 | M6 |
| SK-30 | 30 | 42 | 42 | 84 | 28 | 70 | 12 | 44 | 64 | 10 | M6 | M8 |
| SK-35 | 35 | 50 | 49 | 98 | 32 | 82 | 15 | 50 | 74 | 12 | M8 | M10 |
| SK-40 | 40 | 60 | 57 | 114 | 36 | 96 | 15 | 60 | 90 | 12 | M8 | M10 |
| SK-50 | 50 | 70 | 63 | 126 | 40 | 120 | 18 | 74 | 100 | 13 | M12 | M12 |
